my expedit rearwall trap
Old 28th December 2012
  #1
Gear addict


Thread Starter
my expedit rearwall trap

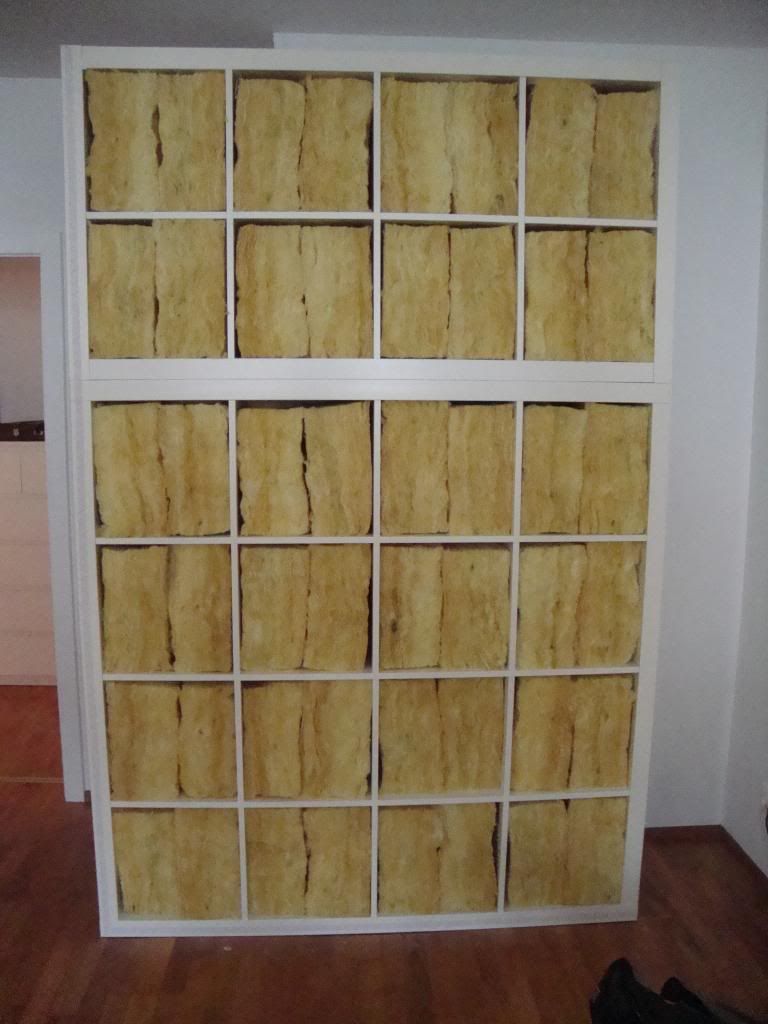

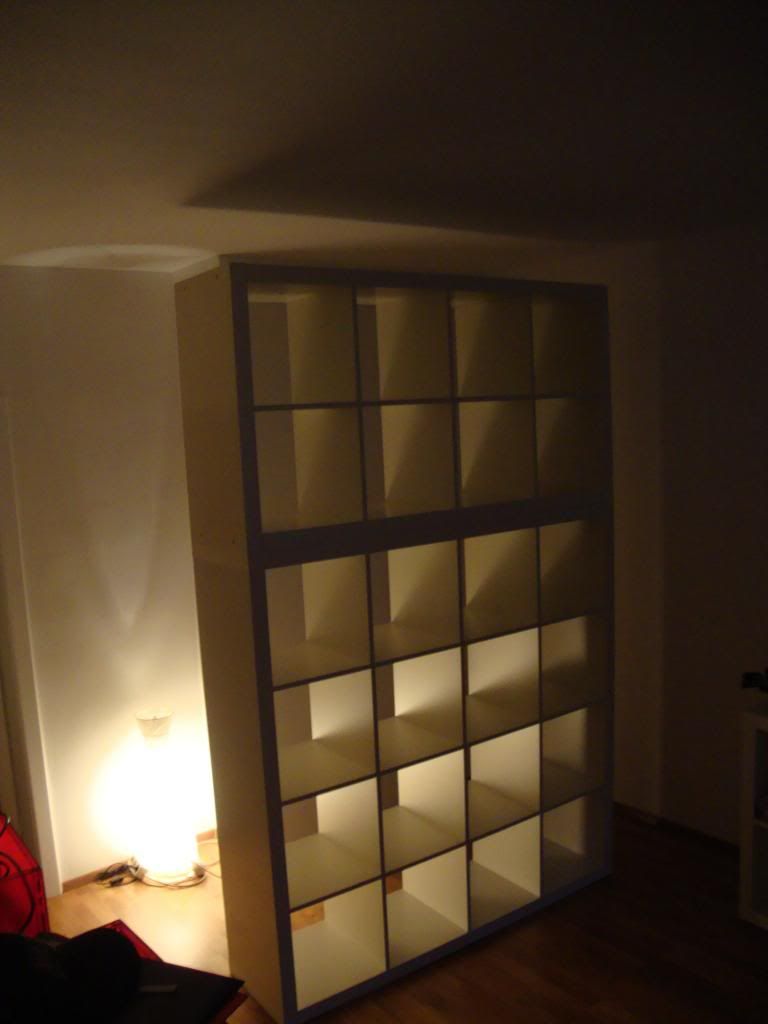

2 expedits stacked, filled with ursa-wool (very fluffy), coverd with GIK-fabric

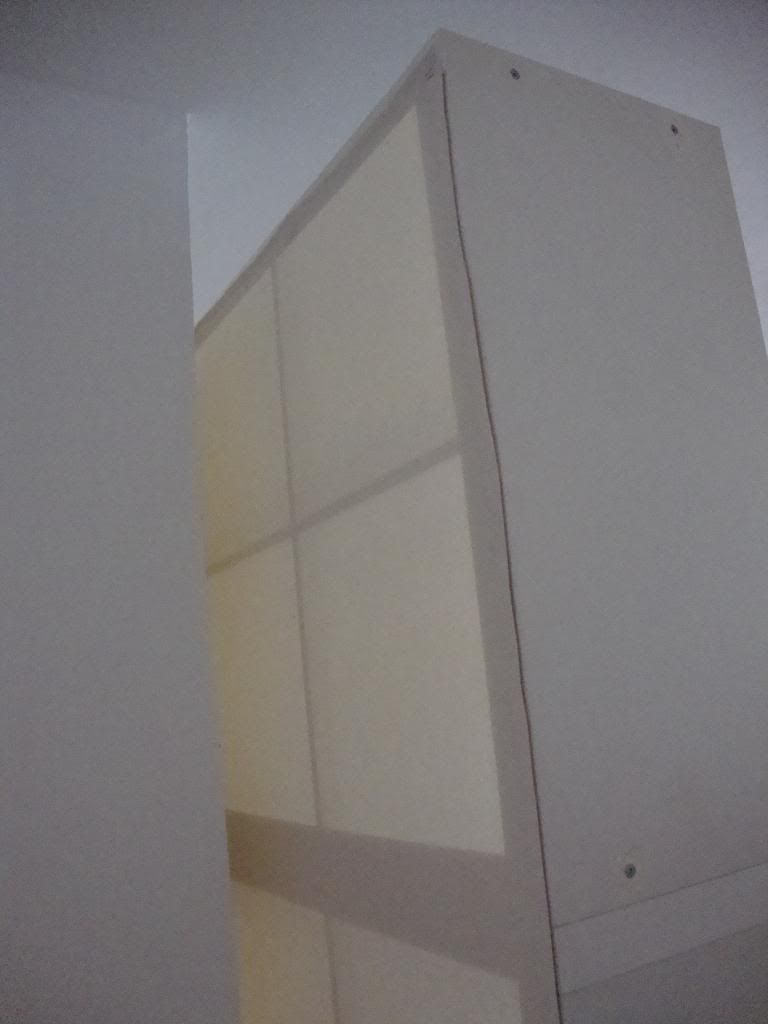

fabric on the backside


the fabric is mounted via velcro





Old 28th December 2012
  #2
Gear addict

yoshimodular's Avatar


Inspiring :-)
Old 29th December 2012
  #3
Lives for gear

AwwDeOhh's Avatar


Old 29th December 2012
  #4
Lives for gear


Nice!
Old 3rd January 2013
  #5
Lives for gear
How does it sound?
Old 3rd January 2013
  #6
Lives for gear

GIK Acoustics's Avatar


Love it!
Old 3rd January 2013
  #7
Gear addict


Thread Starter
thx for your kind replies

this is my room btw https://www.gearslutz.com/board/studi...ical-room.html

Quote:
Originally Posted by gravyface View Post
How does it sound?
great, didnt expect that much improvement
i followed Glenns (GIK) advise from this thread https://www.gearslutz.com/board/studi...-absorber.html
and just by walking around in the room i was floored by the fact how important rear-wall-trapping is :D
i did some sweeps yesterday and noticed 2 nasty 20dB nulls in the 70-100Hz area..
i have no ceiling cloud yet, so i dont know if posting measurements makes sense at this stage..

ill keep you posted with my actual layout and placement of traps n panels

a
Old 3rd January 2013
  #8
Gear Guru

Glenn Kuras's Avatar


I would not be surprised if you are not getting something from the ceiling and or side walls. Looks great though for the back wall!! Nice job!
Old 3rd January 2013
  #9
Lives for gear


Nice idea.

Are you pushing it all the way up against the wall?
Old 4th January 2013
  #10
Gear addict


Thread Starter
thanks Glenn

Quote:
Originally Posted by voidar View Post
Nice idea.

Are you pushing it all the way up against the wall?
its about 1-2" away from the wall, just what the floors sidebars and some cables need; but i can imagine its even more effective with a bigger airgap
Old 4th January 2013
  #11
Gear Guru

Glenn Kuras's Avatar


Yes spacing it off the wall can only help.
Old 11th February 2015
  #12
Gear interested

Mahkey's Avatar


I'm trying a similar thing with this same train of thought...

I've been trapped in a tiny bedroom for over a year and i'm finally moving into a place where i have more space to stretch. It's an odd-shaped room and I'm guessing the half circle wall works in my favour? Anyways, i'm open to any suggestions you might have and im happy to totally rework the whole thing if required.

I don't have a floor plan with exact dimensions and i can't measure until we are there in two weeks, but i have included estimations .. trying to make do with whatever i have to work with in preperation.

Here's the diagram:

View image: Studio layout

The Ikea cabinet is similar to a picture i found on this forum, with this as the main difference:

View image: individual

I have some bass traps for the corners at the bottom of the diagram already and i have 16 tiles for the vocal booth area.

I'm looking to buy something for the first reflection points at the moment, but im not sure what the do about the fireplace.. maybe a gobo in front or something?
Old 11th February 2015
  #13
jwl
Lives for gear

jwl's Avatar


Hate to be the bearer of bad news but the half circle is not helping you. It will tend to focus reflections, and will almost certainly cause some sonic problems.

Most likely the best way to treat it is to put as many traps in the half-circle as possible, or use freestanding traps in front of the circle.
Old 11th February 2015
  #14
Gear interested

Mahkey's Avatar


Better to know that to not!

I guess I could consider reversing the room design..or will that make no difference?

The back ported yamahas will then fire towards the rounded wall in that scenario (rather than the vocal booth) ... I was hoping that the ikea basstrap would absorb some of the energy before it hit that wall in the previous design..
