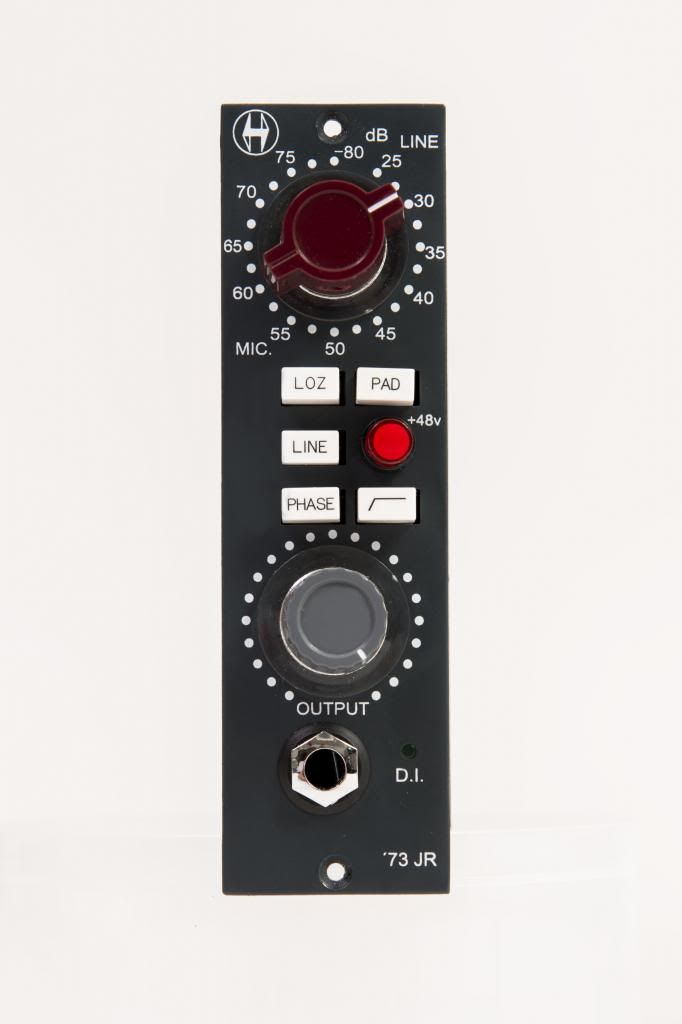

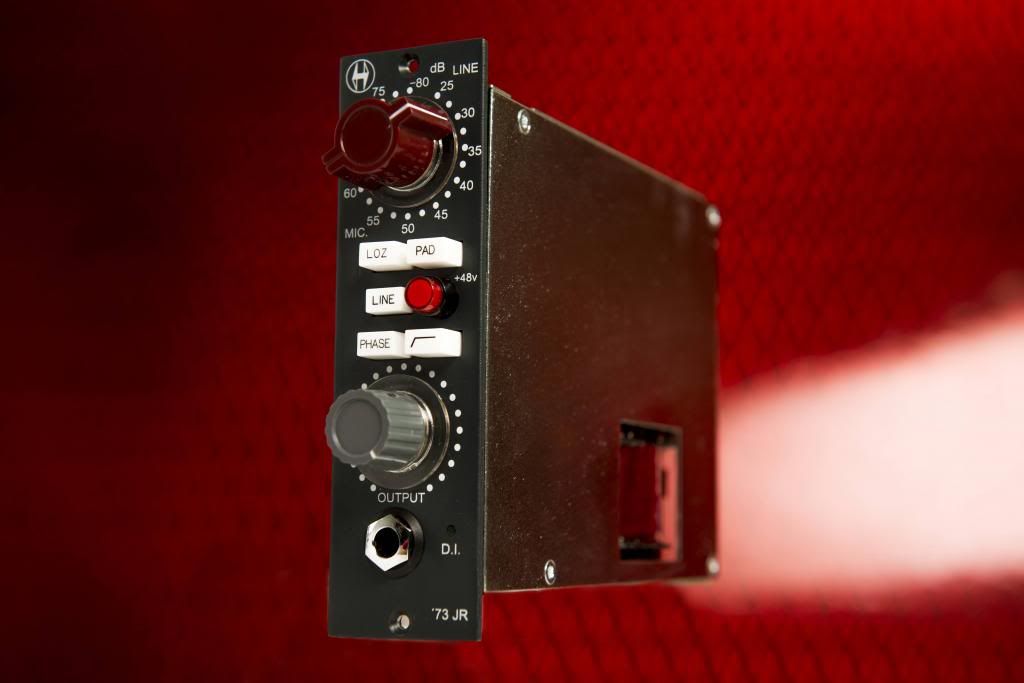

Heritage Audio announces 73JR 500 Series module

Following his successful big brother, the 1073/500, the new ´73JR is a mic preamp in a single 500 series slot with some added features that will cover all the recording needs for engineers and musicians that don´t find the need to track with eq.

Employing only discrete circuitry and conventional components, the ’73 junior is a faithful 3 stage all class A 1073 preamp. Styroflex and tantalum capacitors have been used throughout. No corners were cut.

A useful all discrete class A hi pass filter has been added, essential for recording everything with the exception of probably kick drum and and bass.

The Line mode allows for reamping of prerecorded tracks and it´s perfect for adding some class A color to lifeless recordings.

The smart switched DI (automatically switches from MIC to DI mode when inserting a MONO ¼” jack ) is an all discrete class A JFET circuit ahead of the MIC transformer, so all the juice is there.

Finally, special care has been taken with power handling, implementing internal +24v slow turn on regulation (about 20 seconds to reach full voltage ).This makes your lunchbox PSU healthier and makes the 73JR independent of the rest of the slots.









__________________
Peter
Heritage Audio
www.heritageaudio.net

Quote
2
#2
6th July 2013
Old 6th July 2013
  #2
Gear Guru

RoundBadge's Avatar

Joined: May 2004
Location: Los Angeles ,Ca.
Posts: 10,276

RoundBadge is offline
Super cool.
and a DI to boot!
how much?
Heritage Audio
Thread Starter
#3
6th July 2013
Old 6th July 2013
  #3
Gear nut

Heritage Audio's Avatar

Joined: Jan 2012
Posts: 115

Thread Starter
Heritage Audio is offline
$899, 689€ retail.
Quote
1
#4
6th July 2013
Old 6th July 2013
  #4
Lives for gear

Joined: Sep 2007
Location: A big island - i am an Island
Posts: 2,602

dogma is online now
What transformers in and out where used?
#5
6th July 2013
Old 6th July 2013
  #5
Lives for gear

littlesicily's Avatar

Joined: Apr 2007
Location: Nashville, TN
Posts: 2,001

littlesicily is online now
Very nice!
Heritage Audio
Thread Starter
#6
7th July 2013
Old 7th July 2013
  #6
Gear nut

Heritage Audio's Avatar

Joined: Jan 2012
Posts: 115

Thread Starter
Heritage Audio is offline
Quote:
Originally Posted by dogma View Post
What transformers in and out where used?
Carnhill In and Out
Quote
1
#7
7th July 2013
Old 7th July 2013
  #7
Lives for gear

littlesicily's Avatar

Joined: Apr 2007
Location: Nashville, TN
Posts: 2,001

littlesicily is online now
Quote:
Originally Posted by Heritage Audio View Post
Carnhill In and Out
Peter, besides the absence of the eq, what (if anything) is different between this and your other 500 series 1073?
Heritage Audio
Thread Starter
#8
7th July 2013
Old 7th July 2013
  #8
Gear nut

Heritage Audio's Avatar

Joined: Jan 2012
Posts: 115

Thread Starter
Heritage Audio is offline
Quote:
Originally Posted by littlesicily View Post
Peter, besides the absence of the eq, what (if anything) is different between this and your other 500 series 1073?
Think of it as a single channel DMA73 repackaged in a single 500 series slot!
#9
8th July 2013
Old 8th July 2013
  #9
Gear Head

simones's Avatar

Joined: Jun 2013
Posts: 33

simones is offline
Holly smokes, very nice
#10
8th July 2013
Old 8th July 2013
  #10
Gear Guru

RoundBadge's Avatar

Joined: May 2004
Location: Los Angeles ,Ca.
Posts: 10,276

RoundBadge is offline
Where are these available in the states?
Heritage Audio
Thread Starter
#11
8th July 2013
Old 8th July 2013
  #11
Gear nut

Heritage Audio's Avatar

Joined: Jan 2012
Posts: 115

Thread Starter
Heritage Audio is offline
#12
8th July 2013
Old 8th July 2013
  #12
Banned

Joined: Aug 2005
Location: Nashville
Posts: 5,179

Johnkenn is offline
Since I posted a thread about this before this official thread, can I get a free one?
Quote
1
#13
9th July 2013
Old 9th July 2013
  #13
Jai guru deva om

warhead's Avatar

Joined: Feb 2003
Location: South Carolina
Posts: 13,739

warhead is offline
We have stock on order and units arriving in just days...days I tell ya days!

I like that they announced this when product was almost here, none of the waiting that a lot of these product announcements have become.

Excited!

War
__________________
Warren Dent, Owner - ZenPro Audio: Gear Now & Zen

#14
9th July 2013
Old 9th July 2013
  #14
Lives for gear

ARIEL's Avatar

Joined: Apr 2008
Location: Canada, B.C.
Posts: 1,745

ARIEL is online now
You guys have totally pumped out a ton of modules in the past little while , looks like things are going well . I like the re amping feature on this one .
__________________
The Ultimate Metal Sample Replacement Kit in Trigger and Drumagog format www.invictusaudio.com
#15
9th July 2013
Old 9th July 2013
  #15
Gear maniac

Joined: May 2013
Location: Kansas City
Posts: 241

1rechtien is offline
Good price point too. Glad to see this.
Quote
1
Heritage Audio
Thread Starter
#16
9th July 2013
Old 9th July 2013
  #16
Gear nut

Heritage Audio's Avatar

Joined: Jan 2012
Posts: 115

Thread Starter
Heritage Audio is offline
Quote:
Originally Posted by Johnkenn View Post
Since I posted a thread about this before this official thread, can I get a free one?
Good try...
Quote
1
#17
9th July 2013
Old 9th July 2013
  #17
Gear maniac

plunderpot's Avatar

Joined: Sep 2004
Location: Cincinnati
Posts: 270

plunderpot is offline
ohmygod!
QTM
#18
9th July 2013
Old 9th July 2013
  #18
QTM
Gear interested

QTM's Avatar

Joined: Nov 2008
Location: Studio City, CA
Posts: 28

QTM is offline
Was just about to pull the trigger on the 19" rack DMA73. Now, I'm reconsidering the whole 500 format thing... Fantastic to be able to make such a choice!
__________________
Re-Recording Mixer, Music Producer, and Sadistic Auditory Hallucinogen.
#19
10th July 2013
Old 10th July 2013
  #19
Gear Head

Joined: Jun 2013
Posts: 47

SamKingston is offline
Quote:
Originally Posted by Heritage Audio View Post
Audio examples for this unit would be extremely useful! Im thinking a number of sources recorded through industry standard mics (u87, sm57) as a sonic reference. There are surprisingly few recording examples of your units available online... What do you say?
#20
11th July 2013
Old 11th July 2013
  #20
Gear addict

Joined: Oct 2007
Posts: 473

DCommand is offline
Is there an EQ coming for the 500 format as well?

Hope so!

DCommand
Quote
1
Heritage Audio
Thread Starter
#21
12th July 2013
Old 12th July 2013
  #21
Gear nut

Heritage Audio's Avatar

Joined: Jan 2012
Posts: 115

Thread Starter
Heritage Audio is offline
Quote:
Originally Posted by warhead View Post
We have stock on order and units arriving in just days...days I tell ya days!

I like that they announced this when product was almost here, none of the waiting that a lot of these product announcements have become.

Excited!

War
A good number of units are flying to the States, Germany and UK on Monday!
#22
18th July 2013
Old 18th July 2013
  #22
www.circlestudios.co.uk

Trev@Circle's Avatar

Joined: May 2007
Location: UK
Posts: 3,589

Trev@Circle is offline
Quote:
Originally Posted by DCommand View Post
Hope so!

DCommand
Agreed.
#23
23rd July 2013
Old 23rd July 2013
  #23
Lives for gear

kosi's Avatar

Joined: Jun 2002
Location: Berlin
Posts: 1,029

kosi is offline
so, anybody hear these guys ?
#24
23rd July 2013
Old 23rd July 2013
  #24
Lives for gear

O'Ryan's Avatar

Joined: Aug 2006
Posts: 773

O'Ryan is offline
hmm.....This looks tasty.
#25
24th July 2013
Old 24th July 2013
  #25
Gear nut

Joined: Jan 2013
Posts: 124

CoreRec is offline
Is the design a 1290, or is it 1272 with an extra gain stage?
#26
6th August 2013
Old 6th August 2013
  #26
Lives for gear

ELI-173's Avatar

Joined: Apr 2003
Location: Los Angeles
Posts: 603

ELI-173 is offline

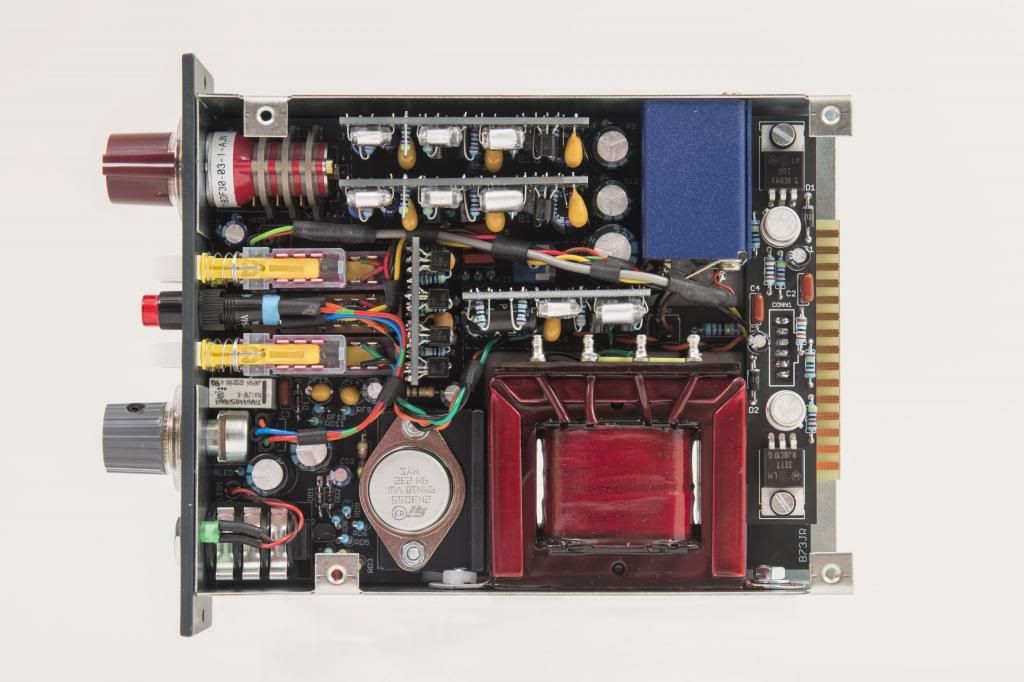

I'm very interested in the 73jr. Does anybody have one yet? If so, what are your impressions? The guts look really nice!
#27
31st October 2013
Old 31st October 2013
  #27
Lives for gear

Strange Leaf's Avatar

Joined: Aug 2007
Location: Sweden
Posts: 635

Strange Leaf is offline

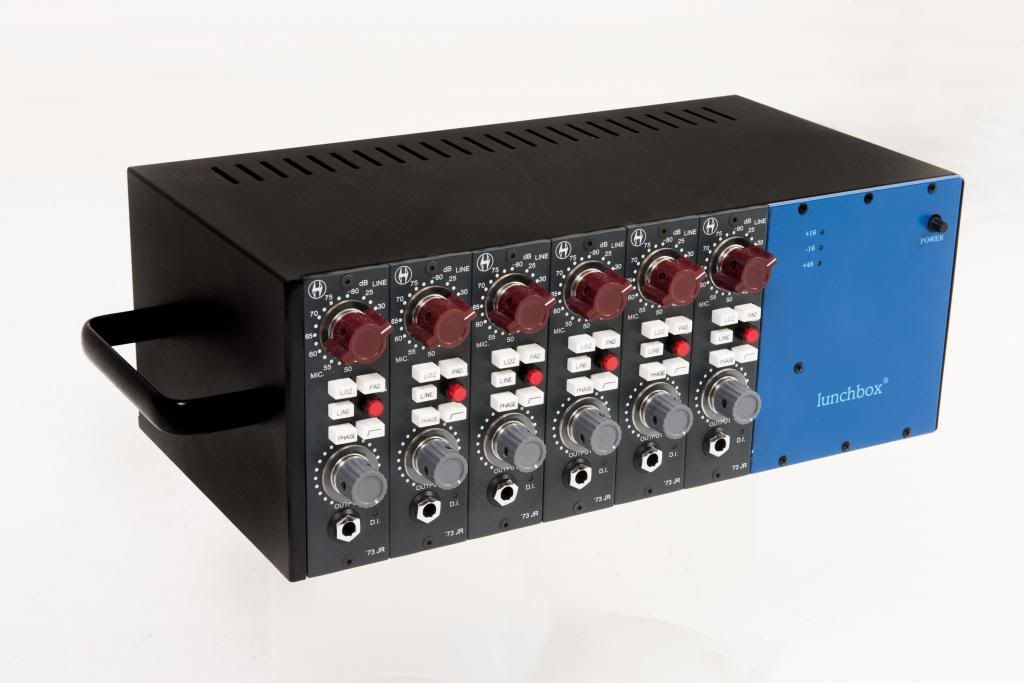

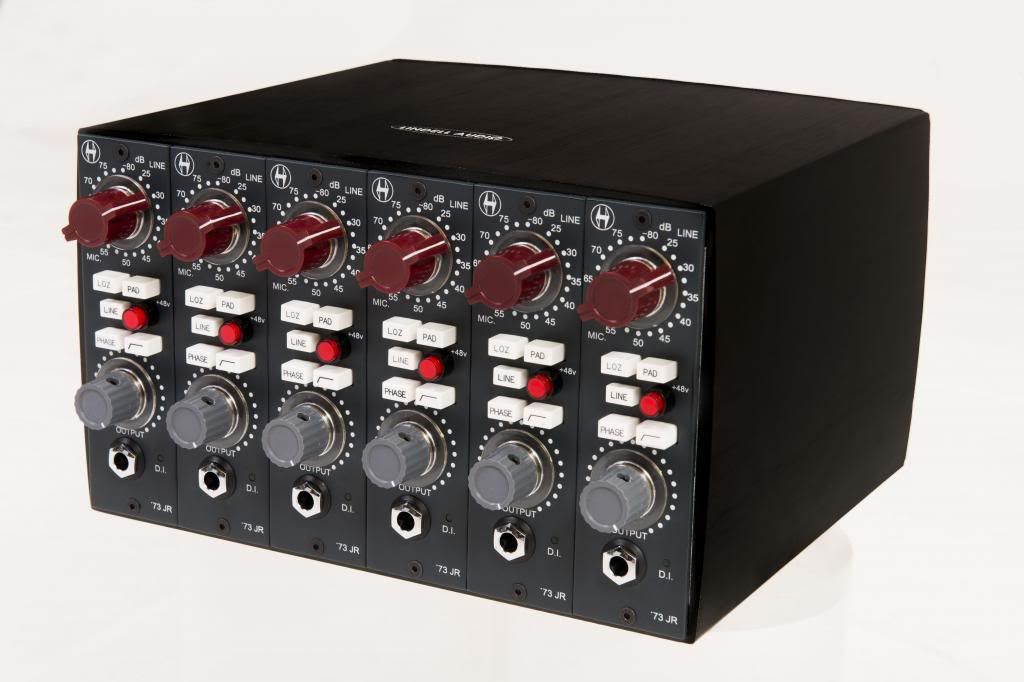

Why edit the API brand name out of one lunchbox, and keep the Lindell Audio on the other ?!?
#28
26th December 2013
Old 26th December 2013
  #28
Gear maniac

Joined: Apr 2010
Posts: 289

unmasked truth is offline
I am a first time heritage customer and very impressed. i have bought 1 so far, saving up to pick up a pair. hopefully you guys pump out other stuff in single space like this in EQs, comps, and im in. build quality is impeccable.
#29
14th January 2014
Old 14th January 2014
  #29
Gear maniac

Joined: Apr 2010
Posts: 289

unmasked truth is offline
Very nice.
#30
16th January 2014
Old 16th January 2014
  #30
Gear maniac

Joined: May 2013
Posts: 198

Doc Goodin is offline
Just recieve a pair of these bad boys. Have only tried on bass DI and micing an Acoustic with a 414 and it sounded pretty bad ass!! With acoustic it sounded very smooth through the HAjr73 with the HPF on. So far it seems like a keeper.

On DI it was very close sounding to my Vintech 573, but I didn't spend enough time with it to say one sounded better. The HAjr definitely breaks up in a cool way.

Tonight I'm recording a drum session and vocals so I will report back with my thoughts.
